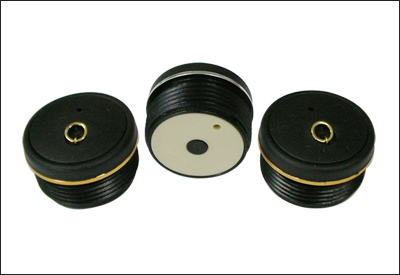

| Rubber Cap Ring (RCR) PAT. |
|
|
 Rubber Cap Ring 1.5 Pitch Size |
|
|
order no. |
mdsize |
cap외경 |
나사외경 |
나사내경 |
사용 tap |
나사길이 |
o-ring |
cusion |
1160 |
14.8 |
17.0 |
15.4 |
14.1 |
16.0 × 1.5p |
10.5 |
13.3 |
16 |
1165 |
15.3 |
17.0 |
15.9 |
14.6 |
16.5 × 1.5p |
10.5 |
13.8 |
16 |
1170 |
15.8 |
18.0 |
16.4 |
15.1 |
17.0 × 1.5p |
10.5 |
14.3 |
17 |
1175 |
16.3 |
18.0 |
16.9 |
15.6 |
17.5 × 1.5p |
10.5 |
14.8 |
17 |
1180 |
16.8 |
19.0 |
17.4 |
16.1 |
18.0 × 1.5p |
10.5 |
15.3 |
18 |
1185 |
17.3 |
19.0 |
17.9 |
16.6 |
18.5 × 1.5p |
10.5 |
15.8 |
18 |
1190 |
17.8 |
20.0 |
18.4 |
17.1 |
19.0 × 1.5p |
10.5 |
16.3 |
19 |
1195 |
18.3 |
20.0 |
18.9 |
17.6 |
19.5 × 1.5p |
10.5 |
16.8 |
19 |
1200 |
18.8 |
21.0 |
19.4 |
18.1 |
20.0 × 1.5p |
10.5 |
17.3 |
20 |
1205 |
19.3 |
21.0 |
19.9 |
18.6 |
20.5 × 1.5p |
10.5 |
17.8 |
20 |
1210 |
19.8 |
22.0 |
20.4 |
19.1 |
21.0 × 1.5p |
10.5 |
18.3 |
21 |
1215 |
20.3 |
22.0 |
20.9 |
19.6 |
21.5 × 1.5p |
10.5 |
18.8 |
21 |
1220 |
20.8 |
23.0 |
21.4 |
20.1 |
22.0 × 1.5p |
10.5 |
19.3 |
22 |
1225 |
21.3 |
23.0 |
21.9 |
20.6 |
22.5 × 1.5p |
10.5 |
19.8 |
22 |
1230 |
21.8 |
24.0 |
22.4 |
21.0 |
23.0 × 1.5p |
10.5 |
20.3 |
23 |
1235 |
22.3 |
24.0 |
22.9 |
21.6 |
23.5 × 1.5p |
10.5 |
20.8 |
23 |
1240 |
22.8 |
25.0 |
23.4 |
22.1 |
24.0 × 1.5p |
10.5 |
21.3 |
24 |
1245 |
23.3 |
25.0 |
23.9 |
22.6 |
24.5 × 1.5p |
10.5 |
21.8 |
24 |
1250 |
23.8 |
26.0 |
24.4 |
23.1 |
25.0 × 1.5p |
10.5 |
22.3 |
25 |
1255 |
24.3 |
26.0 |
24.9 |
23.6 |
25.5 × 1.5p |
10.5 |
22.8 |
25 |
1260 |
24.8 |
27.0 |
25.4 |
24.1 |
26.0 × 1.5p |
10.5 |
23.3 |
26 |
1265 |
25.3 |
27.0 |
25.9 |
24.6 |
26.5 × 1.5p |
10.5 |
23.8 |
26 |
1270 |
25.8 |
28.0 |
26.4 |
25.1 |
27.0 × 1.5p |
10.5 |
24.3 |
27 |
1275 |
26.3 |
28.0 |
26.9 |
25.6 |
27.5 × 1.5p |
10.5 |
24.8 |
27 |
|
|
| |
| Rubber Cap Ring 2.0 Pitch Size |
|
|
order no. |
mdsize |
cap외경 |
나사외경 |
나사내경 |
사용 tap |
나사길이 |
o-ring |
cusion |
2160 |
14.8 |
17.0 |
15.9 |
14.1 |
16.0 × 2.0p |
10.5 |
13.3 |
16 |
2165 |
15.3 |
17.0 |
16.4 |
14.6 |
16.5 × 2.0p |
10.5 |
13.8 |
16 |
2170 |
15.8 |
18.0 |
16.9 |
15.1 |
17.0 × 2.0p |
10.5 |
14.3 |
17 |
2175 |
16.3 |
18.0 |
17.4 |
15.6 |
17.5 × 2.0p |
10.5 |
14.8 |
17 |
2180 |
16.8 |
19.0 |
17.9 |
16.1 |
18.0 × 2.0p |
10.5 |
15.3 |
18 |
2185 |
17.3 |
19.0 |
18.4 |
16.6 |
18.5 × 2.0p |
10.5 |
15.8 |
18 |
2190 |
17.8 |
20.0 |
18.9 |
17.1 |
19.0 × 2.0p |
10.5 |
16.3 |
19 |
2195 |
18.3 |
20.0 |
19.4 |
17.6 |
19.5 × 2.0p |
10.5 |
16.8 |
19 |
2200 |
18.8 |
21.0 |
19.9 |
18.1 |
20.0 × 2.0p |
10.5 |
17.3 |
20 |
2205 |
19.3 |
21.0 |
20.4 |
18.6 |
20.5 × 2.0p |
10.5 |
17.8 |
20 |
2210 |
19.8 |
22.0 |
20.9 |
19.1 |
21.0 × 2.0p |
10.5 |
18.3 |
21 |
2215 |
20.3 |
22.0 |
214 |
19.6 |
21.5 × 2.0p |
10.5 |
18.8 |
21 |
2220 |
20.8 |
23.0 |
21.9 |
20.1 |
22.0 × 2.0p |
10.5 |
19.3 |
22 |
2225 |
21.3 |
23.0 |
22.4 |
20.6 |
22.5 × 2.0p |
10.5 |
19.8 |
22 |
2230 |
21.8 |
24.0 |
22.9 |
21.0 |
23.0 × 2.0p |
10.5 |
20.3 |
23 |
2235 |
22.3 |
24.0 |
23.4 |
21.6 |
23.5 × 2.0p |
10.5 |
20.8 |
23 |
2240 |
22.8 |
25.0 |
23.9 |
22.1 |
24.0 × 2.0p |
10.5 |
21.3 |
24 |
2245 |
23.3 |
25.0 |
24.4 |
22.6 |
24.5 × 2.0p |
10.5 |
21.8 |
24 |
2250 |
23.8 |
26.0 |
24.9 |
23.1 |
25.0 × 2.0p |
10.5 |
22.3 |
25 |
2255 |
24.3 |
26.0 |
25.4 |
23.6 |
25.5 × 2.0p |
10.5 |
22.8 |
25 |
2260 |
24.8 |
27.0 |
25.9 |
24.1 |
26.0 × 2.0p |
10.5 |
23.3 |
26 |
2265 |
25.3 |
27.0 |
26.4 |
24.6 |
26.5 × 2.0p |
10.5 |
23.8 |
26 |
2270 |
25.8 |
28.0 |
26.9 |
25.1 |
27.0 × 2.0p |
10.5 |
24.3 |
27 |
2275 |
26.3 |
28.0 |
27.4 |
25.6 |
27.5 × 2.0p |
10.5 |
24.8 |
27 |
|
|
|
|
|
|
|
